The library for the Märklin C-Track is missing the R3 curved switches No. 24771 and 24772 and the double-crossing switch for the narrow track distance No. 24720. As a hack, the double-crossing switch can be substituted at the time by the narrow crossing No. 24740 but there is no simple hack for the R3 curved switches.
The information Märklin supplies is not very helpful here. I have tried to reconstruct them from Märklin trackplans, could you give them a try?
Sometimes a hard refresh is needed to load new data, CTRL+SHIFT+R in your browser.

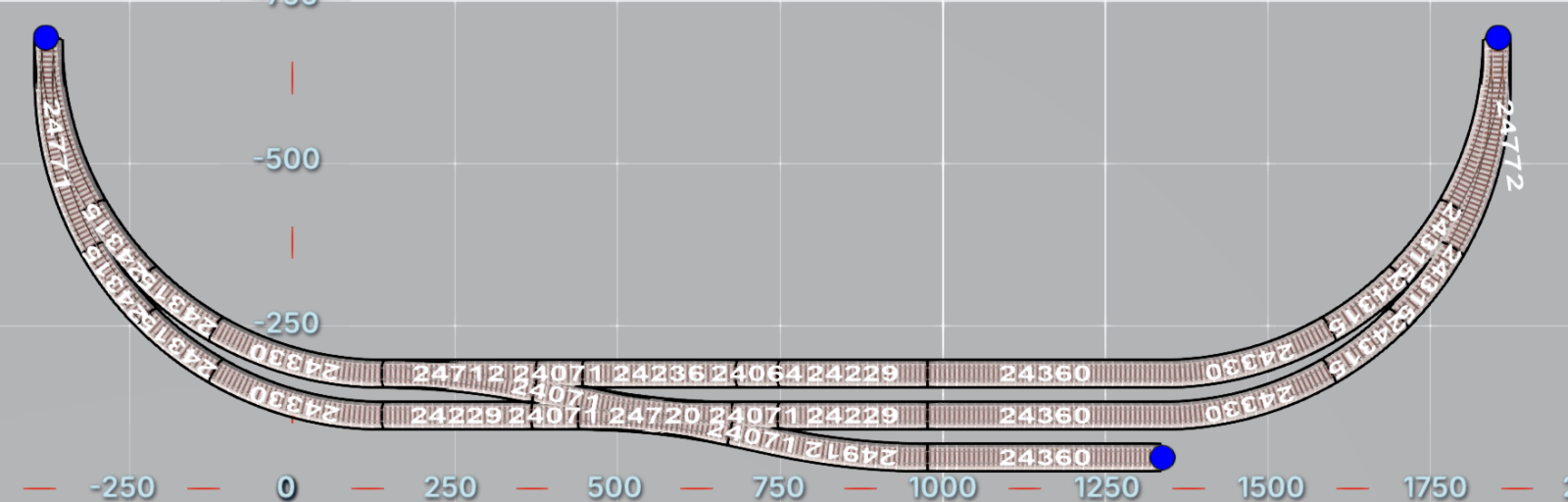

Many thanks for that quick reaction. In a quick test shown below, all looks correct to me. Yes the information from Märklin about the curved switches are not that great. One has to notice that the outer curve is offset by a small straight section with the length of the parallel track distance (77.5 mm or 64.3 mm). I did learn that only through some Youtube Videos.
